装配体→圆周阵列出现的问题。

ning84 · 发表于 2016-2-25 18:36:36

马上注册，结识高手，享用更多资源，轻松玩转三维网社区。

您需要登录才可以下载或查看，没有帐号？注册

x

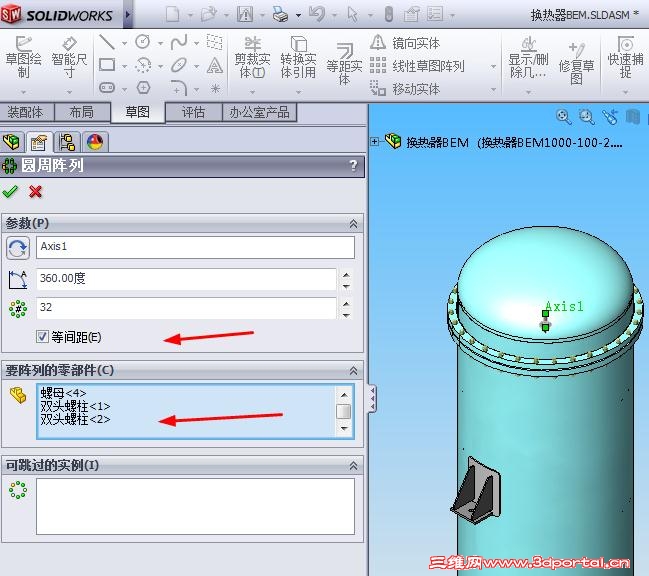

按下图所示，插入圆周阵列，应该只有螺母M20.

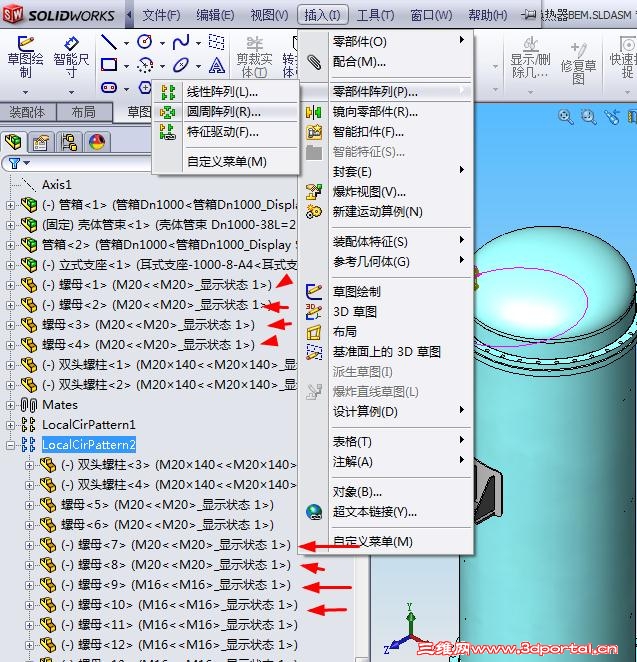

可是图示中却有M16项。在装配体小的时候，没注意到有此问题。
装配体大的时候，这个问题比较明显。

ning84 · 发表于 2016-2-25 22:12:37

出现这个问题好像用API进行了处理，

需要对以下代码进行测试。
