Title Snap-Through Buckling of a Hinged Shell
' u& T3 `+ Y+ U/ x+ g" T. L' _* `" U' j) X2 {2 f) \/ U
Overview
/ T- X0 ~2 s! F7 [% ^# w+ p2 P3 y7 p+ O
| Reference: | C. C. Chang, “Periodically Restarted Quasi-Newton Updates in Constant Arc-Length Method”, Computers and Structures, Vol. 41 No. 5, 1991, pp. 963-972. | | Analysis Type(s): | Static Analysis |
* y% y! M/ ~) N/ y) h3 Y. u5 @. K
Test Case
( \; F9 J9 W. [" O+ h: a# J: {1 K* }/ C/ R! W" F1 l
A hinged cylindrical shell is subjected to a vertical point load (P) at its center. Find the vertical displacement (UY) at points A and B for the load of 1000 N.
J# Q' Q0 I% u, O6 j( \. T2 A+ x0 O! U9 M# @

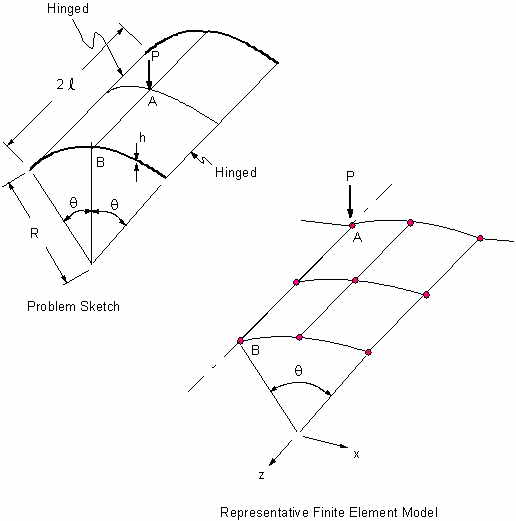

Figure 17.1 Hinged Shell Problem Sketch
2 t- H( U* R7 W7 }; [. c! U9 S$ E$ l4 b2 b- U. M+ C8 a2 Z# W
" b/ ?* O5 O. m+ i$ v% _ w6 Z
" [& U. H* _% w. l0 Q4 T0 h; x( N1 M' `| Material Properties | | E = 3.10275 kN/mm2 | | υ = 0.3 |
| | Geometric Properties | | R = 2540 m | | l= 254 m | | h = 6.35 m | | Θ = 0.1 rad |
| |
/ p8 ]; U# X3 OAnalysis Assumptions and Modeling NotesDue to symmetry, only a quarter of the structure is analyzed. The structure exhibits the nonlinear postbuckling behavior under the applied load. Therefore, a large deflection analysis is performed using the arc length solution technique. The results are observed in POST26.
. Z$ f9 a V/ W! R5 r
|2 t6 `& B1 v. _0 i7 vResults Comparison | Target [1] | ANSYS | Ratio | | UY @ A, mm | -30.0 | -31.7 | 1.056 | | UY @ B, mm | -26.0 | -25.8 | 0.994 |
8 ^6 h& p4 w0 {: C0 ?6 `
- Target results are from graphical solution
: W% q) ~+ r7 E# K, s2 z

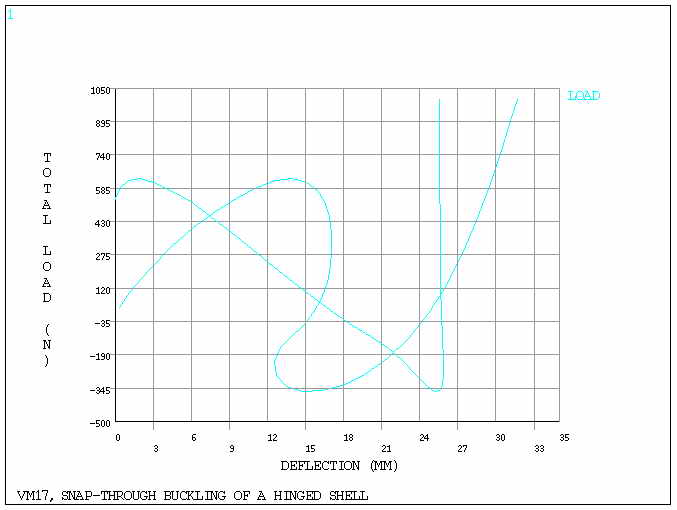

Figure 17.2 Deflection and Total Load Plot/ w* R1 b* T' g# G/ `# d# ]) O
