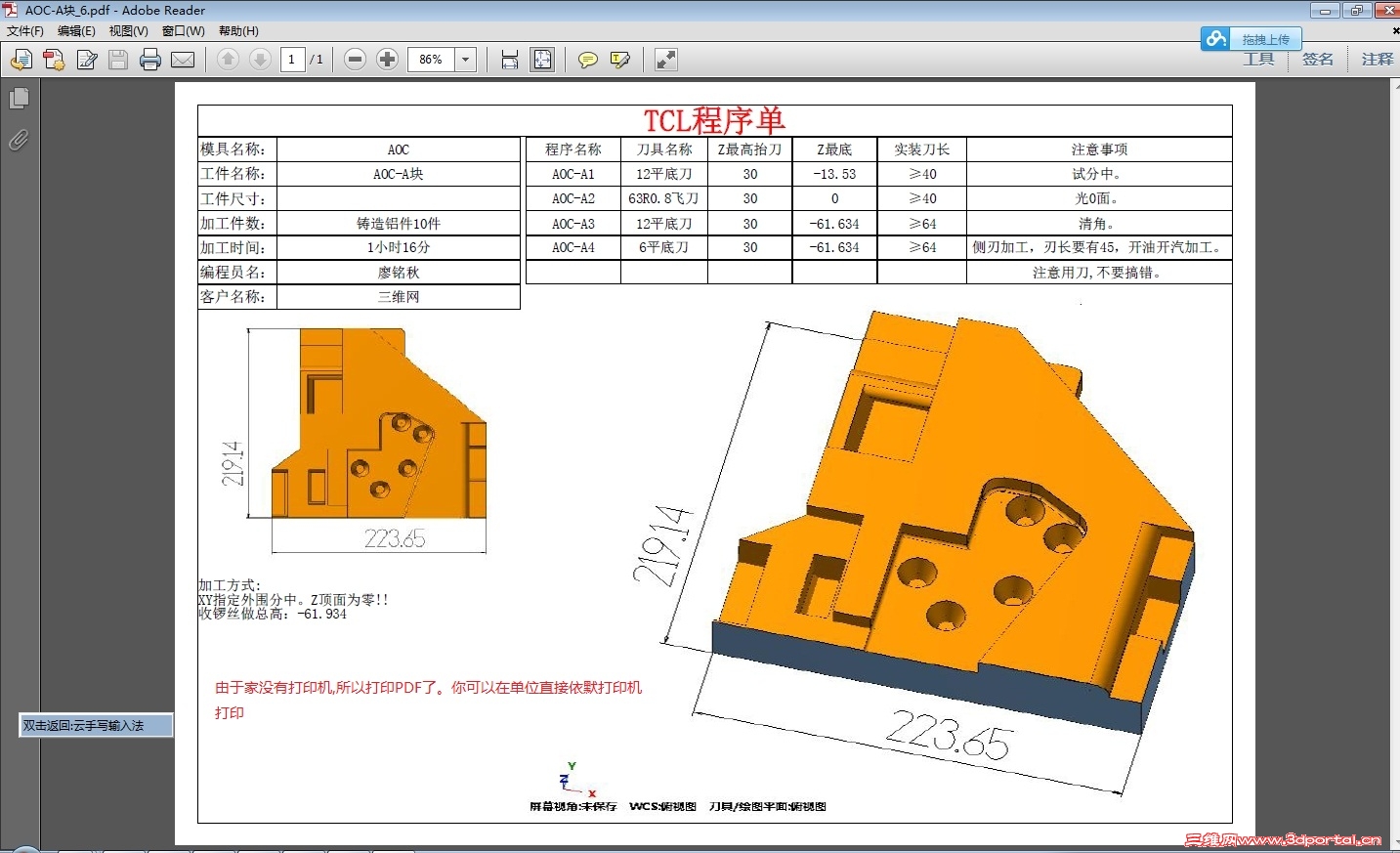

' e( h+ x( a' a4 J因为这么久了也没找到合适自已的程序单外挂.所以自已花了30多个晚上时间.开发了一个依照MC9的默认后处理生成的NC格式.开发了一个自动填表方式的软件<<程序单编辑器.exe>>
2 q* D) E9 s7 H/ q a- I$ J, s% O软件只依照三轴铣床,不自动换刀的后处理NC格式编写.现分享给大家.
9 g2 m! J) V; U6 V4 Z! Q程序单编辑器.exe工件原理:
2 c3 H' k, j% A' _; _1, 可多线程载入多个NC文件.
1 W; W9 @! [1 J$ E& u2，找出NC文件中NC名称,然后自动填表.! j+ {0 K6 g) d
3，找出NC文件中刀具名称,然后自动填表.
# h; _& \: ~( v, \. M4，找出NC文件中Z最高抬刀值,然后自动填表./ S0 N4 w, q V
5，找出NC文件中Z最低值,然后自动填表.
5 J* m- _; U- v9 a6，依照Z最低值,加长,变为实要装刀长,然后自动填表.
4 E7 J" p# w/ {! n6 Y: H7，注释可以原先写好,用右键选择的方式填表.; }/ y* d* G# ]& v5 ~2 C
8, 可截图(打开)两个图像.
- K+ @+ t( M+ _# j: s+ q9, 可提示NC文件中是否有换刀动作.
3 f9 g8 m/ p, S0 n1 S+ \- S* P10,可直接用默认打印机A4纸横向打印.0 X3 S" D1 N! h9 c; ^% l; }' U; b" a
11,以保存单个文件方式保存.方便下次再打开,打印.
! `' W( f5 R" J& C7 ~3 W12,自带计算机.
, p* ]# m8 {2 M' ~8 k+ ^
7 d) \% R* x# N) f/ k9 y7 q# ]0 y
1 V: X& F ^* O8 A, Z
, W2 H/ D$ W& a; @1 n
9 \3 j/ _/ m# o" A8 { N6 t
) {! \* l. j i7 Z) Q+ s9 ~
& O9 B G; O/ o- f/ D
$ b0 U+ o. M8 ]/ \; l+ |, B/ b8 _只支持的NC格式如下:# H0 g* @" X3 h' x; ~
%
3 Z' L3 P. I" T( D# TO0000- E3 s4 m9 w. r- z& h
(PROGRAM NAME - AOC-A1 )0 y* Q6 V4 O, K, ` n+ ?: R0 t
(DATE, Day-Month-Year - 27-03-14 TIME, Hr:Min - 18:28 )
6 {. b2 l' p0 w6 C5 RN100 G21
$ D$ _0 _1 u% _1 j) j% lN110 G0 G17 G40 G49 G80 G90 G54/ V: {1 Q; { a: m) U% Q9 A* ]
( 12平底刀 TOOL - 1 DIA. OFF. - 0 LEN. - 0 DIA. - 12. )) `" `8 ~9 r* }5 h4 T' I
N120 T1 M6
1 |& _' o4 s$ P& ~# S8 TN130 G0 G90 G54 X59.011 Y-122.768 S3500 M3
% T$ z. L, A2 LN140 G43 H0 Z30.9 ^5 g8 T5 k; \+ [2 w
N150 Z5.# I; B: o+ J# C# I4 C3 }* W5 E$ H/ P
N160 G1 Z1.5 F800.' u1 h4 q8 g: [. @& K4 a) z1 D2 b
N170 Y-119.168 F1500.
5 U) G- _: t4 YN180 G3 X55.411 Y-115.568 I-3.61 q9 d) q+ ~/ Z7 ~
N190 G1 X26.8541 Z, @! g1 ~: U5 k/ x( k
N200 G2 X20.854 Y-109.568 J6.
2 v+ W/ u4 p4 nN210 X21.174 Y-107.637 I6.' r4 D8 l& g6 x/ T& l
N220 G1 X52.686 Y-14.918
! }- T1 p7 k0 ]5 V$ xN230 X52.868 Y-14.294
: H. M7 N7 g. ]# ~' i; E( R9 c3 I" g6 TN240 X52.969 Y-13.795 S! r$ C* { X2 e) q
N250 X53.027 Y-13.289
3 e; [% ~1 ?/ n! A. n+ R1 tN260 X53.041 Y-12.767
/ X# C0 S: y: d" G& J% C n# HN270 X53.011 Y-12.246# }, G5 |+ q/ R0 H: ]1 c* a2 _
N280 X52.938 Y-11.742
- H2 m, B. E9 B* Y4 wN290 X52.822 Y-11.246
/ l6 `* r( S: z% Q, @& @# D; TN300 X52.66 Y-10.749
) l- X5 M, @% s) qN310 X52.456 Y-10.268) {' l: ~" K6 v* r4 o/ U4 d
N320 X52.218 Y-9.8183 f+ }2 K6 F; Y0 [: l+ _& Y8 w+ Z
N330 X51.942 Y-9.39( _; ~1 R- ^7 D: U0 N
N340 X51.622 Y-8.977
; ]/ i4 B1 P3 k7 l" L+ e' }* f+ XN350 X51.269 Y-8.593
( y- s( F2 c, {/ oN360 X50.894 Y-8.2496 u) O2 u8 t5 c
N370 X50.49 Y-7.939
( R' F8 V* O. c: [N380 X49.943 Y-7.588
) y+ ]8 t; g# r1 c3 r/ rN390 X27.172 Y5.6616 q; \( H0 q3 X5 v
N400 X26.722 Y5.9054 Y$ k: }. Q+ L
N410 X26.36 Y6.071
: y4 X! C5 b' M/ T- P* u3 HN420 X26.001 Y6.209
) n& h) j# }) U7 N/ \" p" s) xN430 X25.641 Y6.319
4 j$ f( K6 N. hN440 X25.268 Y6.407% \+ X1 o8 u. K9 T( p9 f y* E
N450 X24.884 Y6.47+ d+ \: G3 w% C! f# w. w
N460 X24.483 Y6.509
+ g, Q, v0 w" M; @ E6 |N470 X23.965 Y6.526
! L" h# r1 q; H9 @6 uN480 X10.916' G* u4 K) ]4 a+ I0 J, c. N6 I) m3 ^
N490 X10.369 Y6.5' T% [4 J# p0 M3 K2 V. [; j
N500 X9.988 Y6.443* n0 S6 {; E q/ ^0 d; }6 j# N
N510 X9.615 Y6.35$ w3 h n8 z9 c5 C8 ]9 ~
N520 X9.236 Y6.214+ M7 R/ }. p5 D
N530 X8.871 Y6.0420 R4 _' d9 y; {+ n% q7 k
N540 X8.541 Y5.844
( w1 l9 K. ?1 S* A- F& v! l6 h2 uN550 X8.232 Y5.6147 i, |0 g3 W1 Z' J4 }
N560 X7.934 Y5.344
! z! |& b% l0 V( G8 n8 QN570 X7.663 Y5.045$ U! g/ u% O/ Y
N580 X7.434 Y4.7369 O$ r; K9 Y: c; J& F
N590 X7.236 Y4.406
" W" p! g* `5 o+ vN600 X7.064 Y4.042
1 G4 {8 y7 r ]; G" _N610 X6.928 Y3.662' W1 y& x- L: F; N$ R
N620 X6.834 Y3.289% O& u" h, Y, a, G6 t
N630 X6.778 Y2.9088 t7 w" Y& U5 u8 r5 `% B
N640 X6.752 Y2.3618 d6 |3 D$ h. ?: C& v' S" q
N650 Y-29.558
0 ]5 D" @- K1 Q: y% xN660 G2 X.751 Y-35.558 I-6.001
: r h8 Z& k* k" FN670 G1 X-27.317
$ h- _& E* s3 a+ y- v! {N680 Y-94.688
" y M" W$ c% W9 e6 T' m D. y+ LN690 G2 X-33.316 Y-100.688 I-5.999
3 p& k0 ?6 H' t" U+ Z$ ^N700 G1 X-52.855" k, g9 \' D" r% V$ Q" e i
N710 G2 X-58.855 Y-94.688 J6.
) B2 \2 E$ s5 r0 sN720 G1 Y-35.558 H" G3 l+ G' r$ l) [* l
N730 X-82.766
* j, x8 r8 Y! |' uN740 G2 X-88.766 Y-29.558 J6.
9 R0 j8 M+ M6 L6 eN750 G1 Y10.522# H1 C: T9 C4 Y' z. t% J; O) T
N760 G2 X-82.766 Y16.522 I6.
- c- r2 s% w8 o" ~3 b4 R, T4 c. T( XN770 G1 X-43.8255 P. n& B3 B5 H
N780 Y109.57
) ^ E6 `) ?5 i7 C: ?1 SN790 G2 X-37.825 Y115.57 I6.
! |) |6 K u7 |7 E8 Y/ yN800 G1 X-5.6175 r }: F3 m3 Q7 b
N810 X115.792 Y4.9379 J" f) l1 {0 ^9 f# h& f; h( {
N820 G2 X117.751 Y.502 I-4.041 J-4.4357 W" j8 b, E Y* ?) w
N830 X111.751 Y-5.498 I-6.
' o" M7 Z: a. k, f, H% `N840 G1 X100.94 h, j1 S/ j8 e6 I+ r7 A
N850 Y-109.568% _* V p# R3 z0 `2 p# E# S' T
N860 G2 X94.939 Y-115.568 I-6.001, ?' I$ Z+ `/ P- p% e! i+ Y
N870 G1 X84.9191 Y. R9 b/ l5 z4 L; c( S
N880 X55.411
2 [6 F# F$ o' ?9 \, C- B# @) _N890 G3 X51.811 Y-119.168 J-3.65 s' j+ T/ K) ]; _( y3 {6 l
N900 G1 Y-122.768% k$ J& e# n ~+ E9 A' |
N910 G0 Z30.
* X- L4 e: _0 d# E! uN920 X125.024 Y-63.032
, L+ s/ I% B+ K3 C1 l9 [$ DN930 Z-10.03
4 v0 J6 _" I- J) {. RN940 G1 Z-13.53 F800.) }0 x! Y4 x1 d8 ?( d* h4 e; ^5 W
N950 X121.424 F1500.% @1 l) U8 [7 {4 m% |6 f
N960 G3 X117.824 Y-66.632 J-3.6
: m, S3 ]. ?4 ` o% y% H, WN970 G1 Y-109.5681 j/ Q" t4 Q: k' k) ], B0 k
N980 G3 X121.424 Y-113.168 I3.6 S3 E6 [" r w$ J7 w2 R) H
N990 G1 X125.024! [; \0 z6 U; P# Z, I( R
N1000 G0 Z30.
% T6 Q$ `% t4 {" d" nN1010 M5
+ e3 E6 K, P& a8 ON1020 G91 G28 Z0.: R9 K1 `# n6 }& n
N1030 G28 X0. Y0. H6 g t, @0 q# A. F+ y+ B
N1040 M30; O& P7 [0 R! G) \
%1 ?# @0 a6 @+ D* i! k3 d
3 k: O) Z$ R0 j或者你了解正则或软件.不一定只支持上面NC格式4 k$ W3 P0 i' b- t* }
更多详细软件操作请到百度网盘:
$ z/ y; t3 K3 E8 R4 jhttp://pan.baidu.com/share/link?shareid=1386676616&uk=1328755120. F6 Q& e# o) ?3 }* M( i& W* ^8 y
下载，软件和无声录像。（因为麦用不了。呵呵）
0 J: x3 P6 c6 o1 B6 p9 L q* B9 J& H" _/ J5 S6 Q
8 d/ `/ I' f8 H) |2 p* Y: F
; G) ?! n, b: [. X1 A' Z8 U: h/ Y8 U$ ~
补充内容 (2015-11-3 11:23):
5 N ?: b! O+ i4 B, x% ~这都过的软件了,我都不用了.& x7 `+ n" k( @' ~/ n, N. t
大家用这个吧$ q! R& v' z7 d# c" `
http://pan.baidu.com/s/1hqfBDLM |
|
