这是我从ANSYS的算法验证文件转换过来的，同样适用于CosmosWorks。在计算实际的工程问题以前应该先计算一个类似的验证文件，比较计算结果以验证自己算法的正确性。也可以作为有限元例题使用。
( T! t; O2 a( ^, f" w5 s, l+ E2 ^1 r1 o/ ~0 I( i
9 b- D8 L/ U# m( g) a标题 Cylindrical Shell Under Pressure
^! n' H7 _2 K1 Q; M4 q3 ]
, @ m9 d8 P- W* ?3 r! [/ T& HOverview
2 x" P/ e$ x- w) S+ P9 K8 q1 w4 w
$ u' P; ]5 N$ _8 r2 e/ U( l| Reference: | | S. Timoshenko, Strength of Material, Part I, Elementary Theory and Problems, 3rd Edition, D. Van Nostrand Co., Inc., New York, NY, 1955, pg. 45, article 11. | | A. C. Ugural, S. K. Fenster, Advanced Strength and Applied Elasticity, Elsevier, 1981. |
| | Analysis Type(s): | Static Analysis |
% O! e" V( K4 j* L' Q
Test Case% i" S! F$ v) {6 m7 m: m% Z" z
- q# s5 W+ L. O2 W" A* V7 J2 S
A long cylindrical pressure vessel of mean diameter d and wall thickness t has closed ends and is subjected to an internal pressure P. Determine the axial stress σy and the hoop stress σz in the vessel at the midthickness of the wall.
+ l5 {8 I& k8 x/ S" }& b/ z: i* U {

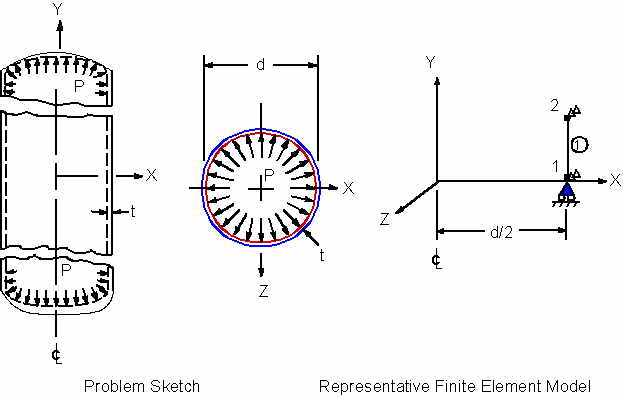

Figure 13.1 Cylindrical Shell Problem Sketch# ?1 w% l3 C2 K9 v4 K" U2 ~
: a! ~7 e7 m1 p0 ~+ Z9 [* ^# Q
6 O3 k- x7 c* v# _2 X3 z
3 ]- q& b6 ]1 o. L
8 \: E" G" [9 M( s
* r' B1 Y, |% B: g& B/ u |. u Y# m
| Material Properties | | E = 30 x 106 psi | | υ = 0.3 |
| | Geometric Properties | | t = 1 in | | d = 120 in |
| |
) B. E5 i5 o+ r- m. z+ o1 M
: P( {2 @8 w3 gAnalysis Assumptions and Modeling NotesAn arbitrary axial length of 10 inches is selected. Nodal coupling is used in the radial direction. An axial force of 5654866.8 lb ((Pπd2)/4) is applied to simulate the closed-end effect. 8 O: E( P, O6 [, {" S( J8 u& E
: C* G8 p, t9 B/ @* Y$ P! r' A1 E
Results Comparison | Target | ANSYS | Ratio | | Stressy , psi | 15,000. | 15,000 | 1.000 | | Stressz , psi | 29,749. | 29,750. | 1.000 |
