CosmosWorks算法验证文件 5 (Thermal Analysis)

tigerdak

.
9 j$ C+ @6 j/ K) w提示：已知一个圆柱体的顶面温度和侧面、底面温度，求温度分布。
0 C1 S1 L) T0 z9 e4 U# d0 F
0 {! O' r9 F: a3 ~* S, R; ?0 |6 LTitle      Temperature Distribution in a Short, Solid Cylinder
* p/ q; o. Q+ m. N
& S6 ?. C/ A" b; R, L4 POverview
4 Z3 L+ x3 @" N/ z

Reference:	P. J. Schneider, Conduction Heat Transfer, 2nd Printing, Addison-Wesley Publishing Co., Inc., Reading, MA, 1957, pg. 134, fig. 6-7.
Analysis Type(s):	Thermal Analysis

& ]; g  j9 u# y4 X8 x8 WTest Case

# A/ y- ^5 ^0 Q! rA short, solid cylinder is subjected to the surface temperatures shown. Determine the temperature distribution within the cylinder
  u' @) i( }- f% @

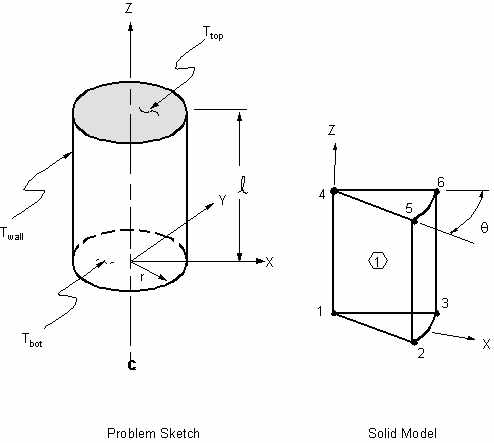

Figure 96.1  Short, Solid Cylinder Problem Sketch
# G8 l) r4 Q) ?) t' H' [
  r! a. L3 ]; a" Y0 q* @% S

Material Properties k = 1.0 Btu/hr-ft-°F

Geometric Properties r =l= 0.5 ft

Loading Ttop = 40°F Tbot = Twall = 0°F

; k8 O1 Q5 T" DAnalysis Assumptions and Modeling NotesSince the problem is axisymmetric, the entire cylinder geometry is not required. An angle Θ = 45° is arbitrarily chosen. Postprocessing is used to print temperatures at the centerline in geometric order. A finer mesh density (than required for reasonable results) is used to produce a smooth isosurface plot.
5 G3 Z5 F" V9 f* C0 K# @
Results Comparison

At Centerline		Target	ANSYS	Ratio
z = 0.0 ft	T, °F	0.0	0.0	--
z = 0.125 ft	T, °F	6.8	6.8	1.007
z = 0.25 ft	T, °F	15.6	15.4	0.984
z = 0.375 ft	T, °F	26.8	26.6	0.991
z = 0.5 ft	T, °F	40.0	40.0	1.00

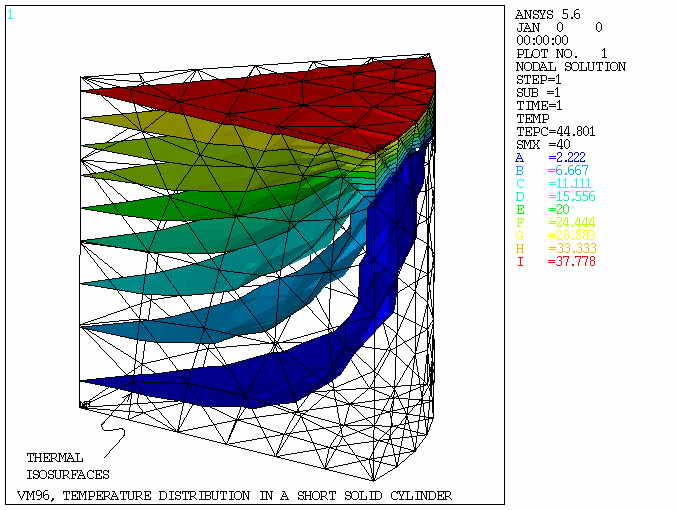

  l+ f! H+ f) @, _- X9 ^8 ?Figure 96.2  Temperature Isosurface Display with Annotation
