Title Thermally Loaded Support Structure
& f- P2 m5 }/ ^. r. D% V0 z1 R$ }/ F7 g; }
Overview
- U/ C7 V/ x8 h( S% f6 \ [7 [! ~: x9 Y) \* I
| Reference: | S. Timoshenko, Strength of Material, Part I, Elementary Theory and Problems, 3rd Edition, D. Van Nostrand Co., Inc., New York, NY, 1955, pg. 30, problem 9. | | Analysis Type(s): | Static, Thermal Stress Analysis |
( Q, Z% f2 K7 B; t: n/ v. Z/ A+ gTest Case
" I: p6 s" n# V# H9 U+ a
J7 Y/ N/ M+ Y+ C8 U1 DFind the stresses in the copper and steel wire structure shown below. The wires have a cross-sectional area of A. The structure is subjected to a load Q and a temperature rise of ΔT after assembly.
; E# i- K8 ]4 i: r( e

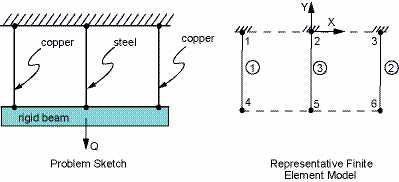

. J( d& t3 ]& w0 W& D" JFigure 3.1 Support Structure Problem Sketch7 x. K$ `0 m. K
- `2 i# L- `% e9 L, [% Z
9 I% b7 `6 |2 e) l$ A/ F9 p
# Y, _6 B- k7 w2 A( g/ x2 N
| Material Properties | | Ec = 16 E6 psi | | αc = 92 E-7 in/in-°F | | Es = 30 E6 psi | | αs = 70 E-7 in/in-°F |
| | Geometric Properties | | A = 0.1 in2 |
| | Loading | | Q = 4000 lb | | ΔT = 10°F |
|
; y, b; d) `) v, l4 q9 H
; q6 T: T% s# f% J ?4 m4 FAnalysis Assumptions and Modeling NotesLength of wires (20 in.), spacing between wires (10 in.), and the reference temperature (70°F) are arbitrarily selected. The rigid lower beam is modeled by nodal coupling. * G: S8 Q9 C; W/ r
' \9 `+ G3 y" d3 ~% H8 ^, FResults Comparison | Target | ANSYS | Ratio | | Stress in steel, psi | 19,695. | 19,695. | 1.000 | | Stress in copper, psi | 10,152. | 10,152. | 1.000 |
