[分享] CosmosWorks算法验证文件 7 (Mode-frequency Analysis )

 关闭 [复制链接]
发表于 2007-11-7 17:43:04 | 显示全部楼层 |阅读模式 来自: 中国上海

马上注册,结识高手,享用更多资源,轻松玩转三维网社区。

您需要 登录 才可以下载或查看,没有帐号?注册

x
.& G) U) Z* D, F' ]% B
提示:如果分析得出第一阶频率接近72.059就可以了,因为CosmosWorks(2006)在频率分析时没有办法设置旋转刚度软化的影响,所以不会得到后面那个target值。0 ]2 n6 I, d$ J. i; q4 P  V
2 p& [" G0 h! I! u" J9 I
Title      Vibration of a Rotating Cantilever Blade9 K/ L4 D$ D) [- G
0 C$ E4 n) K! p! j
Overview, Y: s' Z$ z+ F' }0 D9 M$ @1 M: k+ \1 N
2 `& {. }: t% A; p+ g
Reference:W. Carnegie, “Vibrations of Rotating Cantilever Blading”, Journal Mechanical Engineering Science, Vol. 1 No. 3, 1959, pg. 239
Analysis Type(s):Static Analysis ' ?0 M  S, j8 _0 ]) @. Z
Mode-frequency Analysis
0 K3 A/ ~6 v4 `* l' ?" D

/ K$ o) ]9 C3 W+ UTest Case3 z4 D; F# b3 P
& g9 d& U# y2 I+ T
A blade is cantilevered from a rigid rotating cylinder. Determine the fundamental frequency of vibration of the blade, f, when the cylinder is spinning at a rate of Ω .3 n9 `; H: u4 w; t- [

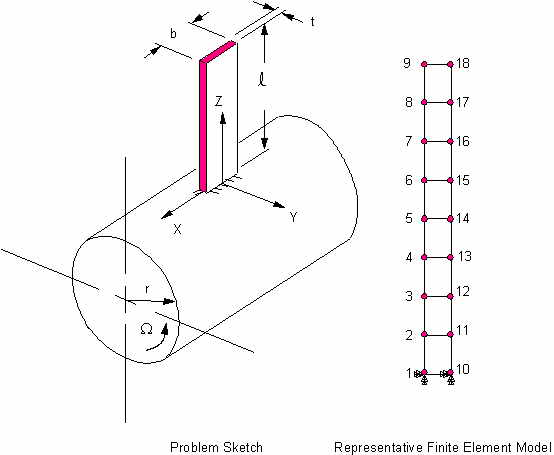

8 m6 q* _4 f! Y4 ?( a* y% P1 {Figure 54.1  Rotating Cantilever Blade
$ K3 y  Z& M' E9 _9 S
7 f0 {0 D6 ?7 O% w: q" S/ f5 b VM54.jpg
- W' B: `0 w. u- d3 W8 m& j, q; s% s4 v0 Q
Material Properties
E = 217 E9 Pa
ρ = 7850 kg/m3
υ = 0.3
Geometric Properties
r = 150 mm
l= 328 mm
b = 28 mm
t = 3mm
Loading
Ω = 100π rad/sec
% _/ x* f1 ^( U" y- c
Analysis Assumptions and Modeling NotesThe problem is solved in two different ways:
5 [+ Q! q8 X9 ~# W" F) I& g
  • Using Elastic Shell Elements (SHELL63)
  • Using 3-D Solid Shell Elements (SOLSH190)
, y8 X1 C4 r$ B$ J! y% x, r
Spin (centrifugal) softening is used. Since the cylinder is rigid, the base of the blade has its displacements constrained. A static prestress analysis is performed to include the inertial effects resulting from the rotation of the cylinder.* U7 m" @# _* K5 i5 P. }. ~, t' F* v
! p2 V% b1 ?; a3 C2 t% I! a+ d
Results Comparison6 k. C5 r' i1 D
  B  k! |) s/ ]
TargetANSYSRatio
SHELL63
f, Hz52.7552.010.986
SOLSH190
f, Hz52.7551.800.982
0 |9 o2 I! _$ @7 D- L! D

5 a7 Q" j4 A0 e[ 本帖最后由 tigerdak 于 2007-11-9 15:25 编辑 ]
 楼主| 发表于 2007-11-7 17:45:55 | 显示全部楼层 来自: 中国上海
都不考虑旋转刚度软化的情况下,在偶的机器上CosmosWorks是72.059,ANSYS是72.060。
